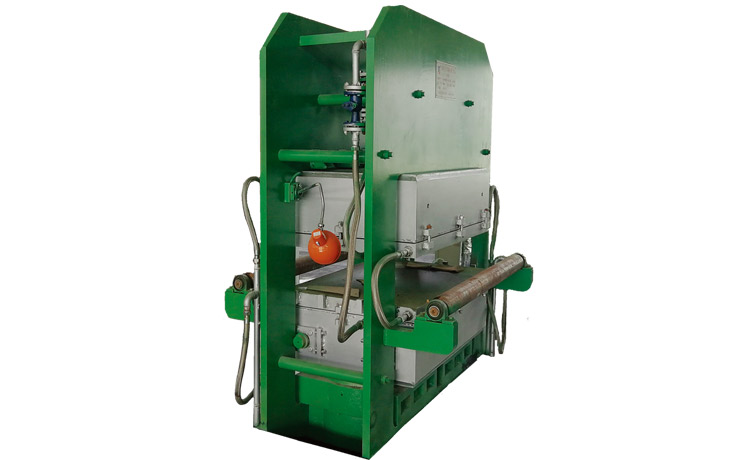

| Steel cord conveyor belt(fabric) flat vulcanization production line Technical parameters / name | ||||||||
| perfermance parameters | 1200X10000 | 1400X10000 |
1800X10000 (12600) |
2000X10000 | 2200X10000 |
2400X10000 (10600) |
2600X10600 | 2700X15600 |
| Nominal mounding force MN | 48 | 56 | 72/90.72 | 80 | 88 | 108/114.48 | 124.02 | 176.9 |
| Hot plate specifications（L*W)mm | 1200X10000 | 1400X10000 |
1800X10000 (12600) |
2000X10000 | 2200X10000 |
2400X10000 (10600) |
2600X10600 | 2700X15600 |
| Hot plate unit pressureMPa | 4 | 4 | 4 | 4 | 4 | 4.5 | 4.5 | 4.2 |
| Cylinder diameter/mm | 420 | 500 | 600 | 600 | 600 | 650 | 650 | 650 |
| Number of cylinders/支 | 18 | 16 | 16/20 | 16 | 16 | 16/18 | 18 | 24 |
| Clamping force/KN | 700 | 900 | 1200 | 1300 | 1500 | 1700 | 1800 | 2000 |
| Tensile force/KN | 350 | 450 | 600 | 650 | 750 | 850 | 900 | 1000 |
|
Maximum initial tension of a single wire rope/N |
400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
|
Single wire rope tension adjustment range/N |
800-3000 | 800-3000 | 800-3000 | 800-3000 | 800-3000 | 800-5300 | 800-5300 | 800-5300 |
|
1200X12600X2 Batching label specification(2 sets)
|
|||||
|
Number
|
Model
|
Name
|
Quantity
|
Material
|
Remarks
|
|
1
|
GB/T799-1998
|
Anchor bolt M20X500
|
20
|
Level 4.8
|
|
|
2
|
GB/T5780-2000
|
bolt M12X50
|
16
|
Level 4.8
|
|
|
3
|
GB/T41-2000
|
screw nut M12
|
8
|
Level 5
|
|
|
4
|
GB/T41-2000
|
screw nut M20
|
20
|
Level 5
|
|
|
5
|
GB/T95-2002
|
washer12
|
24
|
100HV
|
|
|
6
|
GB/T95-2002
|
washer20
|
20
|
100HV
|
|
|
7
|
STO40-50 VT4 45X45U
|
Safety chuck (passive end)
|
2
|
Finished product
|
Chaoyang Sanchuang
|
|
8
|
STW40-50 VT4 45X45U+M-8/B(Powered)
|
Safety chuck (active end)
|
2
|
Finished product
|
Sprocket pitch 19.05 teeth 42
|
|
9
|
GB/T1243-1997
|
Chain (12A) 105 saves 2m
|
2
|
Finished product
|
Pitch 19.05
|
|
10
|
TK58-Y2.2-4P-15.22-M1-I-A
|
Spiral bevel gear reducer
|
2
|
Finished product
|
Zhejiang Tongli
|
|
11
|
GB/T37-1988
|
T-bolt M12X60
|
8
|
Level 8.8
|
|
|
Fiction:Yang Chengren Date:Jan.10th 2018 Review: Date:
|
|||||
|
1200X12600X2 batcher plus parts details（two sets）
|
|||||
|
Number
|
Drawing number
|
Name
|
Quantity
|
Material
|
Remarks
|
|
1
|
TS1802-09-00
|
Rolling device (left drive)
|
2
|
Component
|
|
|
2
|
TS1711-2-1-00
|
Stand
|
2
|
Weldment
|
|
|
3
|
TS1711-2-1-1
|
Bottom plate
|
2
|
Q235-A
|
|
|
4
|
TS1711-2-1-2
|
Rectangular square tube
|
4
|
Q235-A
|
|
|
5
|
TS1711（左）-2-2-00
|
Bracket (left drive)
|
2
|
Weldment
|
|
|
6
|
TS1711-2-2-1
|
Bottom plate
|
2
|
Component
|
|
|
7
|
TS1802-09-01
|
45 square steel
|
2
|
45
|
|
|
8
|
TS1711-2-3-00
|
safety cover
|
2
|
Q235-A
|
|
|
9
|
TSG1396-01
|
Reducer sprocket
|
2
|
45
|
|
|
10
|
TS1415-04-02
|
T-slot plate
|
4
|
Q235-A
|
|
|
Fiction:Yang Chengren Date: Jan.10th 2018 Reivew: Date:
|
|||||
